Merlin 8

Rating

My vote: None ( 4.9 avg )

Description

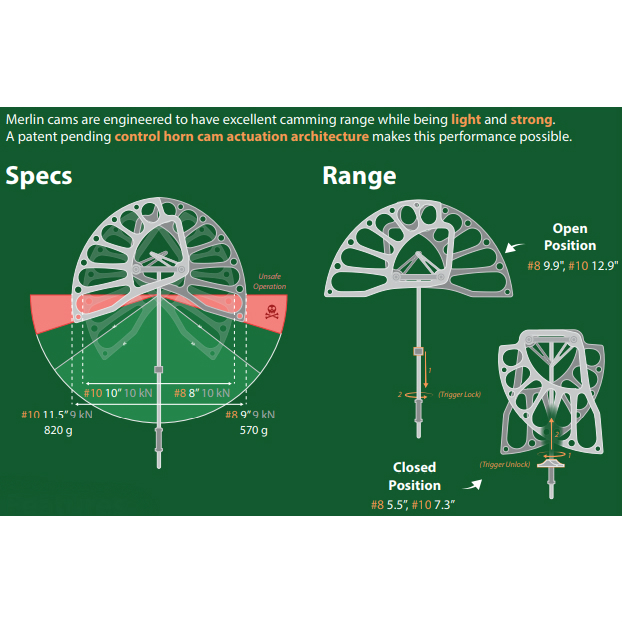

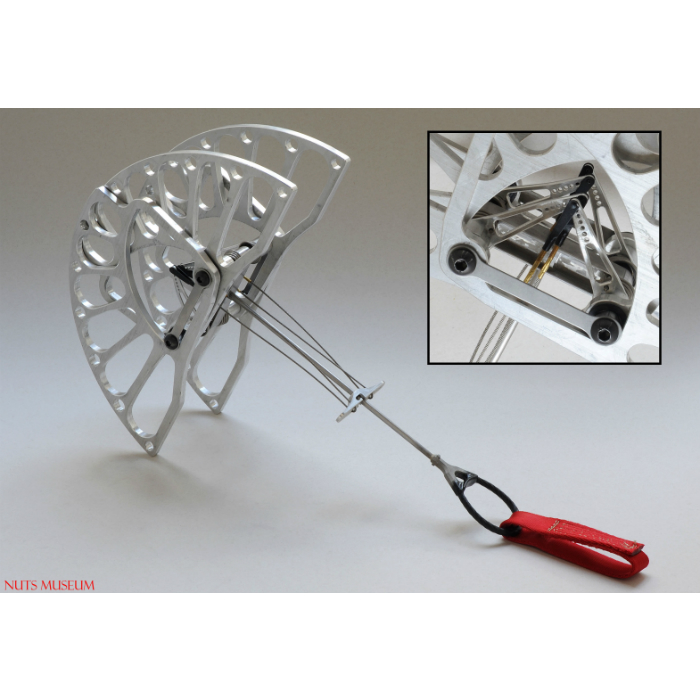

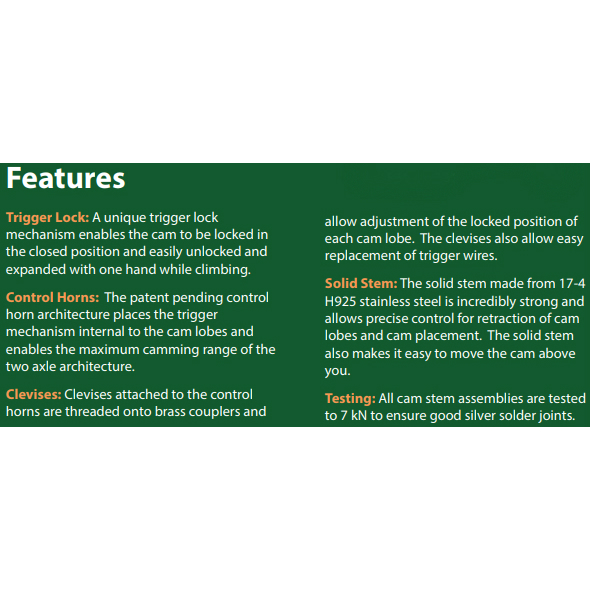

Merlin cams use a patent pending control horn retraction mechanism. The control horn mechanism eliminates the geometrical constraints placed on other large cams and allows for a larger camming range, resistance to buckling, and lower weight. The Merlin cams also have a patent pending trigger lock mechanism that allows the cams to be locked in the retracted position and easily deployed with one hand while climbing.

Retail price

US$ 200.00
Weight (g / oz)

Weight (g / oz)

In grams and ounces, the weight, as stated by the manufacturer/brand.

570.0 g / 20.10 oz
Cam Head 4 lobes, double axle
Offset No offset
Stem Rigid single stem
Sling 9 cm x18 mm Nylon / Polyamide (single sling loop)
Camming Angle 15.00° (angle is consistent throughout)
Active Strength 9 kN
­
Cam Range (mm / in)

Cam Range (mm / in)

In millimeters and inches, the maximum dimensions of the cam lobes when shut tight and fully extended. Since the "usable" range is so debatable, all manufacturers now list the full dimensions to avoid selling themselves short.

For offset cams, we'll list the max dimensions possible and then afterwards list each of lobe dimensions.

139.7 - 251.5 mm  (5.50 - 9.90 in) ­
Materials Main Material: Lobes are 6061 T6 aluminum. Stem assembly and axles are stainless steel of various types
Wire Material: 17-4 H1025 stainless
Certification ­

Although these cams are no longer being made, you can email  for any repairs.
