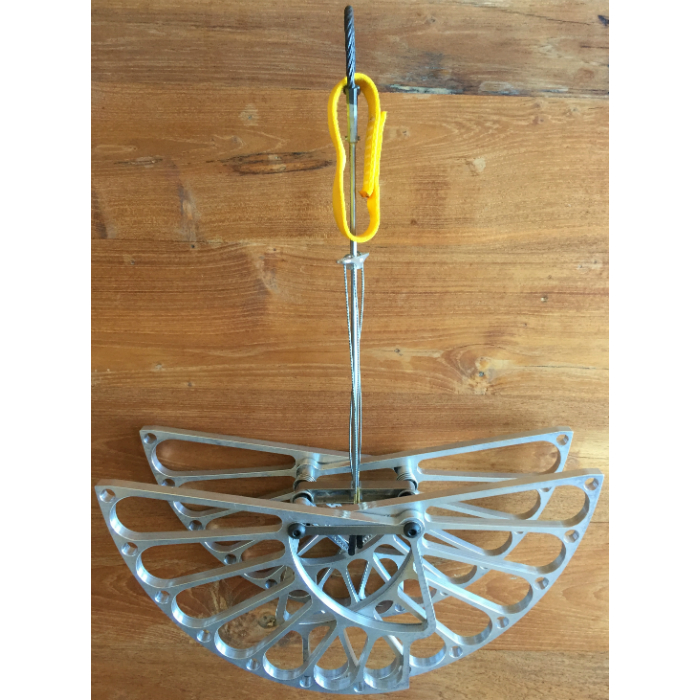

Merlin 10
Description

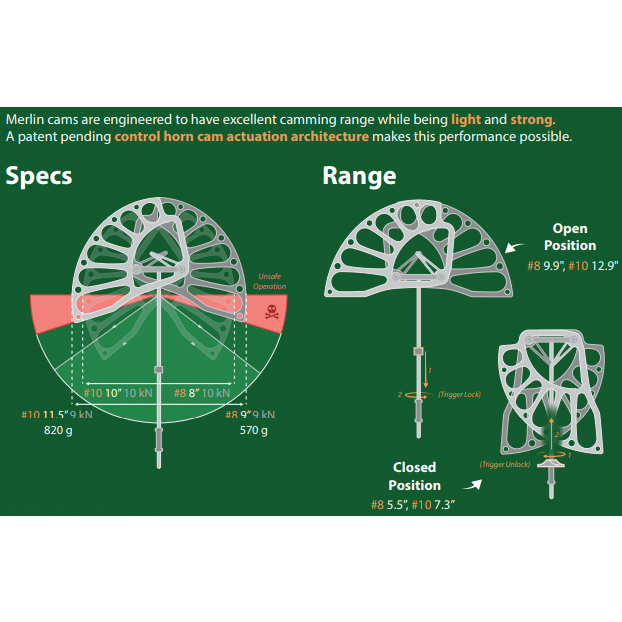

Merlin cams use a patent pending control horn retraction mechanism. The control horn mechanism eliminates the geometrical constraints placed on other large cams and allows for a larger camming range, resistance to buckling, and lower weight. The Merlin cams also have a patent pending trigger lock mechanism that allows the cams to be locked in the retracted position and easily deployed with one hand while climbing.
Retail price
This Product is Hard to Find.
We don’t know where you can buy this item online in the US. We’ll continue to check all the major retailers and will update this page as soon as we find one.
If you know where to find this online in the US, let us know, and we’ll add the link.
Weight (g / oz) Weight (g / oz)In grams and ounces, the weight, as stated by the manufacturer/brand. | 820.0 g / 28.92 oz |
| Cam Head | 4 lobes, double axle |
| Offset | No offset |
| Stem | Rigid single stem |
| Sling | 9 cm x18 mm Nylon / Polyamide (single sling loop) |
| Camming Angle | 15.00° (angle is consistent throughout) |
| Active Strength | 9 kN |
Cam Range (mm / in)Cam Range (mm / in)In millimeters and inches, the maximum dimensions of the cam lobes when shut tight and fully extended. Since the "usable" range is so debatable, all manufacturers now list the full dimensions to avoid selling themselves short. For offset cams, we'll list the max dimensions possible and then afterwards list each of lobe dimensions. | 185.4 - 327.7 mm (7.30 - 12.90 in) |
| Materials | Main Material: Lobes are 6061 T6 aluminum. Stem assembly and axles are stainless steel of various types Wire Material: 17-4 H1025 stainless |
| Certification | |
Although these cams are no longer being made, you can email merlinrockgear@gmail.com for any repairs.
