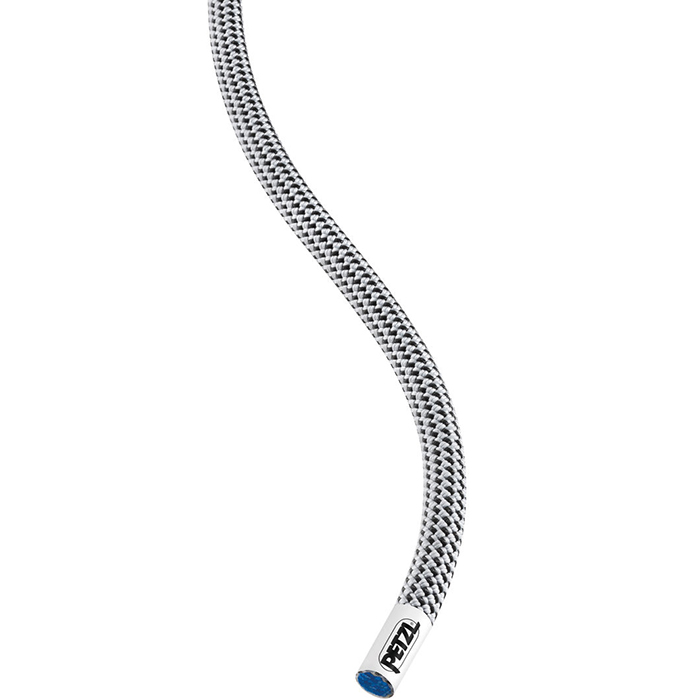

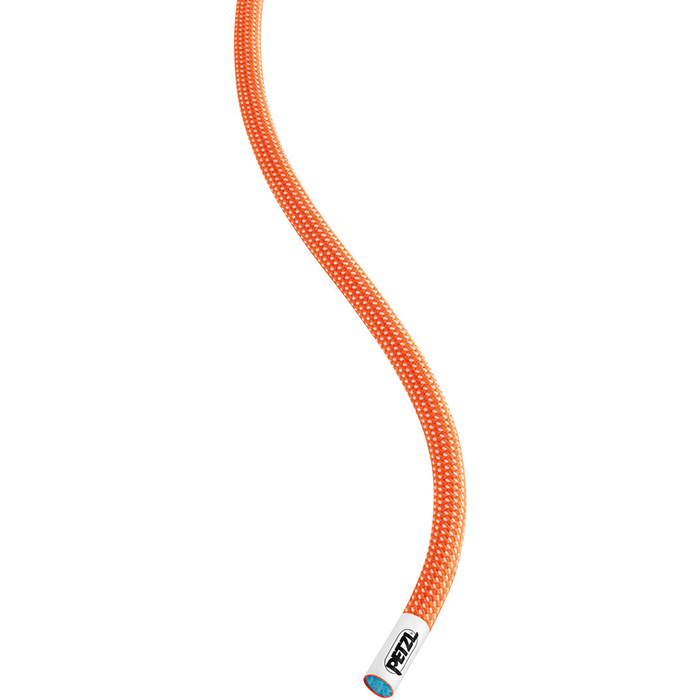

7.7MM PASO® GUIDE 70M 2XDRY
7.7 mm diameter half rope for technical mountaineering and ice climbing, with Guide UIAA Dry treatment
Thin and very lightweight, the PASO GUIDE 7.7 mm rope is designed for intensive use in ice climbing or technical mountaineering. The Guide UIAA Dry water repellent treatment gives it excellent water resistance, and is well-suited to everyday use in extreme conditions.
- Thin rope designed for very technical practices:
- thin diameter and ultra-light
- for use in mixed, snow or ice environments
- Excellent water resistance:
- Guide UIAA Dry treatment: complete water-resistant treatment, making the rope more resistant to water, dirt and abrasion
- meets the requirements of the UIAA standard Water repellent test: water absorption of less than 2 %
- the rope is especially suitable for intensive or everyday use in extreme conditions
- Convenient rope handling :
- Middle Mark: indicates the middle of the rope to facilitate maneuvers
- EverFlex treatment: special thermal treatment stabilizes the core strands and improves consistency; offers excellent grip and consistent handling over time
- Construction: 48 carrier
- Material(s): nylon
When you click a link below and then checkout online, no matter what you buy (climbing gear or not), we get a small commission that helps us keep this site up-to-date. Thanks!
If you can’t see any buying options above, try turning off all ad-blocking plugins.
|Weight|| 40.0 g/m|
6.172 lbs / 2800 g
|Diameter (millimeters)||7.7 mm|
|Length (meters)||70 m|
|UIAA Falls (Single / Half / Twin)||0 / 7 / 20|
|Dynamic Elongation (Single / Half / Twin)||0.0 % / 31.0 % / 28.0 %|
|Static Elongation (Single / Half / Twin)||0.0 % / 8.5 % / 6.0 %|
|Impact Force (Single / Half / Twin)||0.00 kN / 6.00 kN / 10.00 kN|
|Dry Treatment||Sheath & Core|
|Sheath Proportion (%)||36.0 %|
|Sheath Slippage (mm)|||
|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
