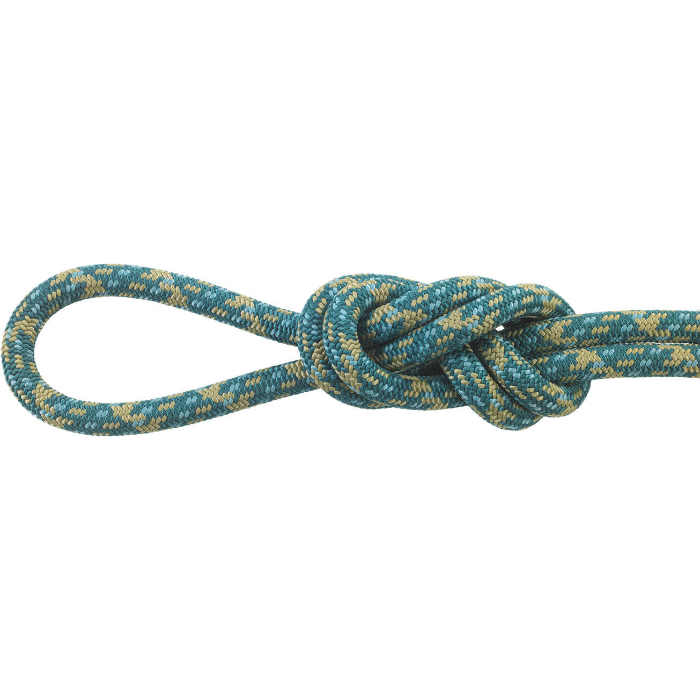

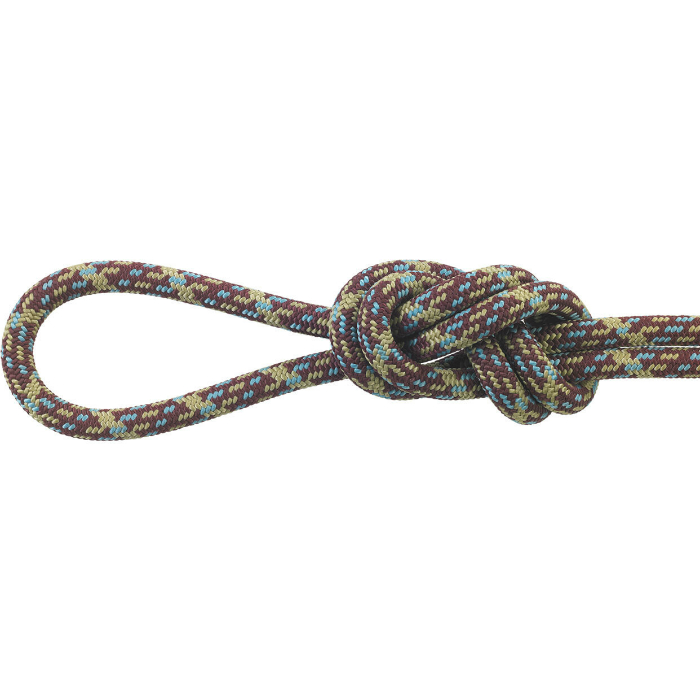

Maxim 8mm Unity 2xDry
  • Maxim 8mm Unity 2xDry
  • Maxim 8mm Unity 2xDry

8mm Unity 60m 2xDry

Rating

no ratings

Description

MAXIM Unity is certified as both a twin and a half rope. It is a multi-purpose rope that is perfect for the weight-conscious alpinist or climber. Unity is constructed to reduce drag and increase fall protection over sharp edges. Therefore it is perfectly suited as an alpine climbing rope or ice climbing rope. For ice climbing MAXIM recommends 2x-DRY treated models.

Unity is a light-weight rope that can be used as an alpine climbing rope, ice climbing rope or for mixed climbing. Due to its certification as both a twin and a half rope, it can either be alternately clipped to protection as a half rope, or used in tandem as a twin or double rope. The half rope technique reduces rope drag and increases fall protection over sharp edges, especially on routes with multiple traverses.

The Unity series provides outstanding performance on routes with multiple lenght or long alpine treks where rope use is required for crevasse or fall protection. Unity is light and tough enough to be used for glacier travel on the world‘s most demanding mountains.

Unity is available in 8mm and 9mm in both Standard dry or 2x-DRY. Endura STD-DRY models have a dry treated core, Endura 2X-DRY models feature a dry treated core and sheath and meet the UIAA dry standard.  Select models also feature our exclusive TPT sheath, which results in even less drag by aligning the sheath yarns with the movement of the rope.

Retail price

US$ 292.00
Weight 46.9 g/m
6.203 lbs / 2814 g
Diameter (millimeters) 8.0 mm
Length (meters) 60 m
Rope Type

Type

There are 3 types of dynamic ropes that are used by climbers. They are known as Single, Half (Double), and Twin. The type of rope preferred varies by climbing style, location, and region.


Single

By far, the most common type of rope. Great for indoors and out. In the US, it is the most common sport and big wall and are also used for trad cragging. The handling is simple and the diameter options are quite varied.

Half (Double)

The best cure for a meandering route, only one of the ropes will clip into each piece of protection so a mindful climber can can reduce rope drag considerably. You can also rappel twice the distance, it’s easier to safely protect traverse pitches and there is a smaller chance that both ropes would become damaged (by rockfall, crampons, etc).

Twin

Both ropes must be clipped through each piece of protection. This is the lightest style of (two) ropes. They excel for rappels, going twice the distance vs a single rope, but do not have the ability to mitigate rope drag even though there are two ropes.

It is unlikely both ropes will be damaged at once, and is why many alpine, ice and mixed climbers choose twin and/or half ropes.


Learn More

Every rope type and when to use them
Half/Twin
UIAA Falls (Single / Half / Twin)

UIAA Falls

This refers to the number of UIAA falls a rope has been tested to be able to withstand without breaking. The UIAA fall is a complicated test that is designed to create a uniform standard for strength in ropes, and is not generally reflective of real-world climbing situations. The test involves dropping a weight tied to the rope in such a way that it will see the highest amount of force a real-world situation could generate. The UIAA requires that Single and Half ropes must pass this test without breaking at least 5 times, while twin ropes must withstand 12 falls. In practice, it can likely be concluded that ropes that have higher than this standard number of falls will be stronger and put up with more abuse.


It is important to note that any rope that is UIAA or EN certified is considered safe to climb on, regardless of the number of UIAA falls it is rated for.

0 falls  / 7 falls  / 0 falls
Dynamic Elongation (Single / Half / Twin)

Dynamic Elongation

This refers to the amount of stretch measured during the dynamic testing (or drop test) used when certifying ropes. Higher stretch will absorb more force and result in a softer catch but increases chances of groundfall at the beginning of a climb. The EN and UIAA require a stretch of at least 10% and no more than 40% for dynamic ropes. Single and Half ropes are tested individually and Twin ropes are tested as a pair.

0.0 % /  29.0 % /  -
Static Elongation (Single / Half / Twin)

Static Elongation

This refers to the amount of stretch measured during the static test used when certifying ropes. Most climbers will notice the difference in static elongation when climbing in a top rope situation, where higher stretch will make for a springier belay and could result in a ground fall when climbing closer to the ground. The EN and UIAA require a stretch of no more than 10% for Single and Twin ropes and no more than 12% for Half ropes. Single and Half ropes are tested individually and Twin ropes are tested as a pair.

0.0 % /  9.6 % /  -
Impact Force (Single / Half / Twin)

Impact Force

Impact force is the amount of force in kN that is measured at the testing mass during the UIAA dynamic drop rope test. When the weight is dropped, the force measured must be at or below 12kN for Single and Twin ropes and 8kN for Half ropes. The real world application of this test is determining that the rope can dissipate and absorb the appropriate amount of force from the fall as it would be felt by the climber. The variables used in the test set a situation that is well beyond anything climbers encounter, and shouldn't be considered realistic to actual climbing situations.


In reality forces of this magnitude would result in severe injury as this test is designed to test the limits of the rope and not the comfort of the climber.

0.00 kN /  6.00 kN /  -
Dry Treatment

Dry Treatment

When a rope is dry treated, it has had a coating applied to its core fibers, its sheath fibers, or both. The purpose of this coating is to reduce the amount of water the rope can absorb when in wet or icy conditions. Wet ropes are heavier, handle and belay differently, and have been tested to be weaker than dry ropes. Many climbers prefer dry treated ropes for very dusty or dirty environments, as they are more resistant to uptake of dirt and can stay cleaner longer.


Learn More

Benefits of Dry vs Non-Dry ropes
Sheath & Core ­
Sheath Proportion (%) ­
Sheath Slippage (mm) 0 mm
Type of Middle Mark None
Rope End Marker None
Certification EN, UIAA
RFID / NFC Option

RFID and NCF

This technology can be helpful if you are a gym or professional business where you'd like to track the usage and age of your ropes.

RFID is how items are uniquely identified using radio waves (Radio Frequency Identification). It's for 1-way communication from 10cm to 100m away depending on the frequency. Example: Airport Baggage.

NFC is a subset of RFID that is restrained to close proximity communication typically less than 10cm (Near Field Communication). NFC chips can operate a 2-way signal to exchange information. Example: Apple Pay.

None

When used as a Half (Double) rope, UIAA falls range from 7-8
