The Quark Adze 2017 is technically retired but it's still sold online.The Quark Adze 2017 is no longer produced by Petzl. We're showing it as "available" on WeighMyRack because you can still find it at trustworthy online retailers.

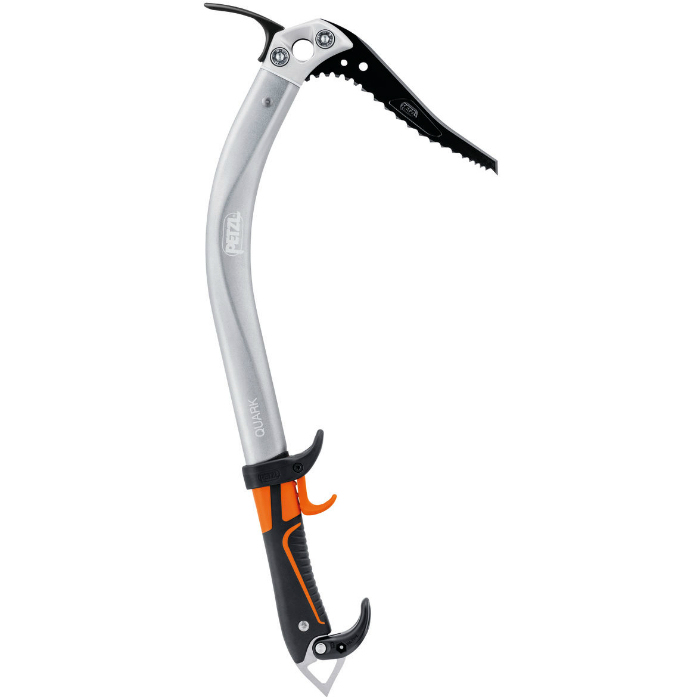

Quark Adze 2017
Ice axe for technical mountaineering and ice climbing.
QUARK is a versatile ice axe, designed primarily for technical mountaineering and for ice climbing. Because of the head's modular construction, it adapts to any situation. The QUARK ice axe is easy to use: its balance and its ICE pick allow solid placements on any type of ice. Hooking is more efficient, thanks to the clearance under the head and to the shape of the pick. The GRIPREST and the TRIGREST hand rests ensure a comfortable, powerful grip adapted to leashless climbing.
Structure is entirely modular for adapting the ice axe to the activity and context:
- equipped with the MARTEAU, the TRIGREST hand rest and the GRIPREST, the QUARK is a versatile tool adapted to technical mountaineering and ice climbing
- equipped with MASSELOTTES pick weights (optional), and without the MARTEAU, the QUARK has an exceptional swing adapted to the coldest ice. It is ideal for ice climbing.
- without any accessories, the QUARK weighs only 460 g, making it an ultra-high performance ice axe for snow couloirs, for example
Interchangeable ICE pick is tapered at the tip (3 mm) for easy penetration, even in cold ice. Its shape allows stable hooking on both ice and rock.
Ergonomic over-molded handle provides a good grip, even for small hands, and insulation from the cold. The lower part of the shaft penetrates snow perfectly when the ice axe is used in piolet-canne (without the GRIPREST).
Carabiner hole under the GRIPREST

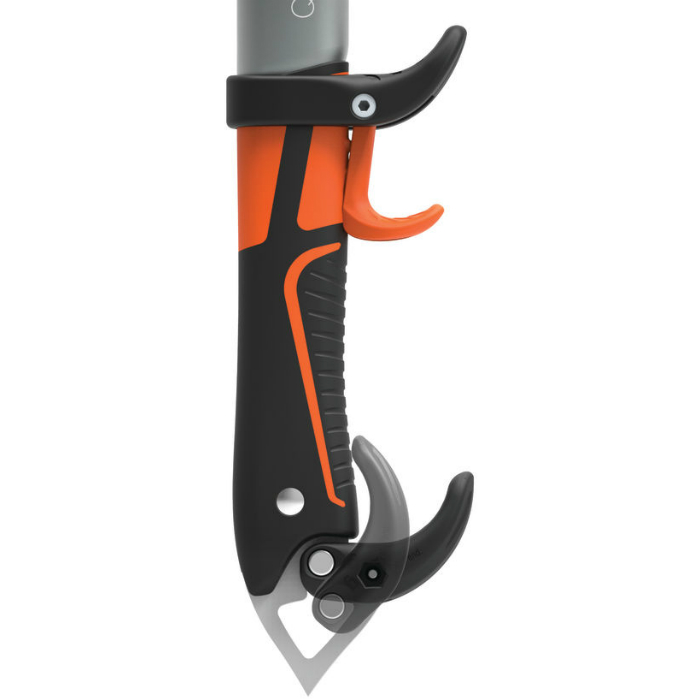

The TRIGREST hand rest braces the hand and the index finger (easily adjustable without tools). The upper part, equipped with the grip, allows the user to comfortably switch hands. The lower trigger is used to brace the index finger to improve the stability of the ice axe and increase striking precision. It also serves as the locking lever of the TRIGREST.
When you click a link below and then checkout online, no matter what you buy (climbing gear or not), we get a small commission that helps us keep this site up-to-date. Thanks!
|Weight (g / oz)|
Weight (g / oz)
In grams and ounces, the weight, as stated by the manufacturer/brand.
The weight is the packaged weight. If there are differences in weight (due to optional accessories) we'll note them here.
| 550 g / 19.40 oz|
Stripped down the base-weight of the Quark is only 460 g
|Length (cm)||50 cm|
|Head Details|| Adze (pair: Quark Hammer 2017
2 Screw adjustment
|Ice Rating|| Pick: T / Type 2|
Shaft: T / Type 2
|Picks|| Included with the tool: |
Other Picks Available:
|Pommel & Grip|
Pommel & Grip
Fixed: An upper pommel that is fixed in place (it cannot move up/down the shaft nor can it be taken off).
Adjustable: An upper pommel that can move up and down the shaft.
Removable & Adjustable: An upper pommel that is completely removable and also adjustable.
Removeable: An upper pommel that is either on or off (it cannot move up/down the shaft).
None: If there is no upper pommel that comes standard (there may or may not be options to buy separately).
Fixed: A lower pommel that is fixed in place (the angle cannot be changed nor can it be taken off).
Adjustable: A lower pommel that can change angle or location on the tool.
Removable: When the lower pommel can be removed but not adjusted.
None: If there is no lower pommel that comes standard (there may or may not be options to buy separately).
| Upper Pommel: Removable & adjustable|
Lower Pommel: Removeable
Grip Size: Adjustable
|Materials|| Pick: Steel|
Grip: Overmolded Rubber
The main climbing gear certifications are CE and UIAA--and normally the UIAA creates the rules that the CE body also supports. When possible, we try to list all the certifications the product carries.
To sell a climbing product in Europe, the device must be CE certified. There are no official requirements to sell climbing gear in the US. The UIAA certification is a voluntary process.
Long but informative video, shows all the features of Quark, Nomic and Ergo ice tools.
All in all, the new modular Quark is a great do-it-all technical transformer. With a few turns of the wrench you have a full-on ice climbing tool—or a stripped-down alpine tool. If you love getting into the mountains and are looking for one set of tools that can do everything well, I highly recommend the Quark. Poke around for more functional after-market components and you could make the few drawbacks here disappear.
