A pictoral representation of UIAA-101 and EN-892 standards for ropes.

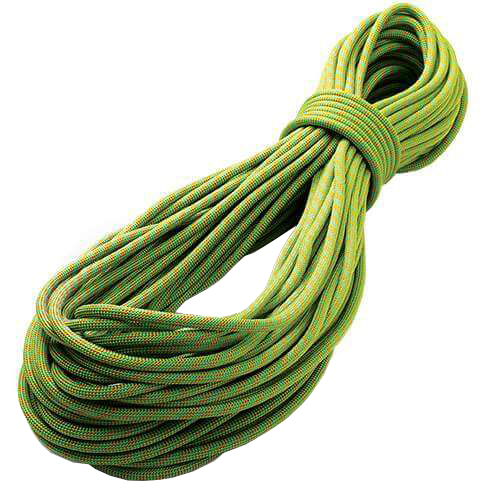

9.1mm Master 200m 2xDry
The specialist of our range. Low weight and narrow diameter suit this rope to top-end sport climbing. Choose this rope for extreme on-sights and red-points where every gram saved and drag reduction are crucial to success.
|Weight|| 56.0 g/m|
24.691 lbs / 11200 g
|Diameter (millimeters)||9.1 mm|
|Length (meters)||200 m|
|UIAA Falls (Single / Half / Twin)||5 falls / 17 falls / 42 falls|
|Dynamic Elongation (Single / Half / Twin)||29.0 % / 27.0 % / 24.0 %|
|Static Elongation (Single / Half / Twin)||6.4 % / 6.4 % / 3.7 %|
|Impact Force (Single / Half / Twin)||9.00 kN / 6.90 kN / 11.10 kN|
|Dry Treatment||Sheath & Core|
|Sheath Proportion (%)|||
|Sheath Slippage (mm)||0 mm|
|Type of Middle Mark||None|
|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
