A pictoral representation of UIAA-101 and EN-892 standards for ropes.

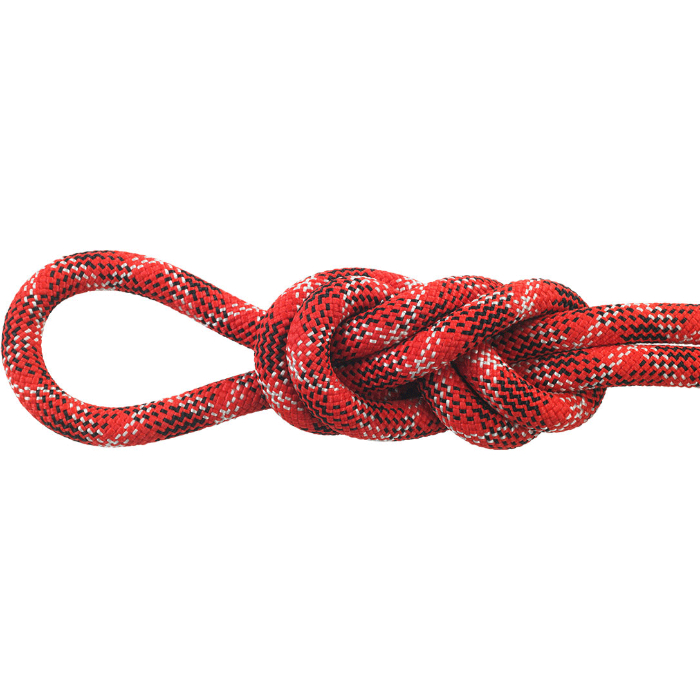

9.9mm Apex 70m Dry
Designed for big wall and trad climbing or for working projects and developing routes, Apex makes an excellent rope for challenge courses and fall protection for safety personnel. It consistantly takes a beating but still delivers reliable clips. All Apex ropes feature Endura Dry on the core.
|Weight|| 65.5 g/m|
10.108 lbs / 4585 g
|Diameter (millimeters)||9.9 mm|
|Length (meters)||70 m|
|UIAA Falls (Single / Half / Twin)||7 / 00|
|Dynamic Elongation (Single / Half / Twin)||40.0 % / 0.0 % / 0.0 %|
|Static Elongation (Single / Half / Twin)||10.0 % / 0.0 % / 0.0 %|
|Impact Force (Single / Half / Twin)||12.00 kN / 0.00 kN / 0.00 kN|
|Sheath Proportion (%)|||
|Sheath Slippage (mm)||0 mm|
|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
