A pictoral representation of UIAA-101 and EN-892 standards for ropes.

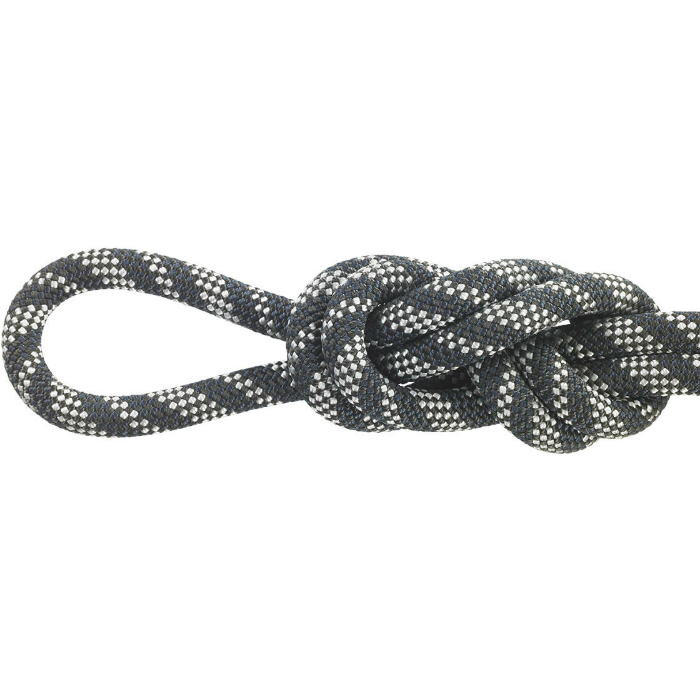

10.8mm Chalk Line 200m Dry
Chalk Line Str8 Jacket Core was specifically developed for the extreme punishment gyms inflict on rope. Whether you have a small gym or big gym the Chalk Line can take the constant falls and belays ropes endure in climbing gyms. The Str8 Jacket Core allows the Chalk Line to hold its shape and keep the cover and core in balance which virtually eliminates sheath slippage. This will reduce flat spots and help maintain the performance of the overall rope. The Chalk Line will provide a safe and easy belay through a variety of devices while still maintaining its shape.
|Weight|| 77.4 g/m|
34.127 lbs / 15480 g
|Diameter (millimeters)||10.8 mm|
|Length (meters)||200 m|
|UIAA Falls (Single / Half / Twin)||7 / 00|
|Dynamic Elongation (Single / Half / Twin)||40.0 % / 0.0 % / 0.0 %|
|Static Elongation (Single / Half / Twin)||10.0 % / 0.0 % / 0.0 %|
|Impact Force (Single / Half / Twin)||12.00 kN / 0.00 kN / 0.00 kN|
|Sheath Proportion (%)|||
|Sheath Slippage (mm)|||
|Type of Middle Mark||None|
|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
