A pictoral representation of UIAA-101 and EN-892 standards for ropes.

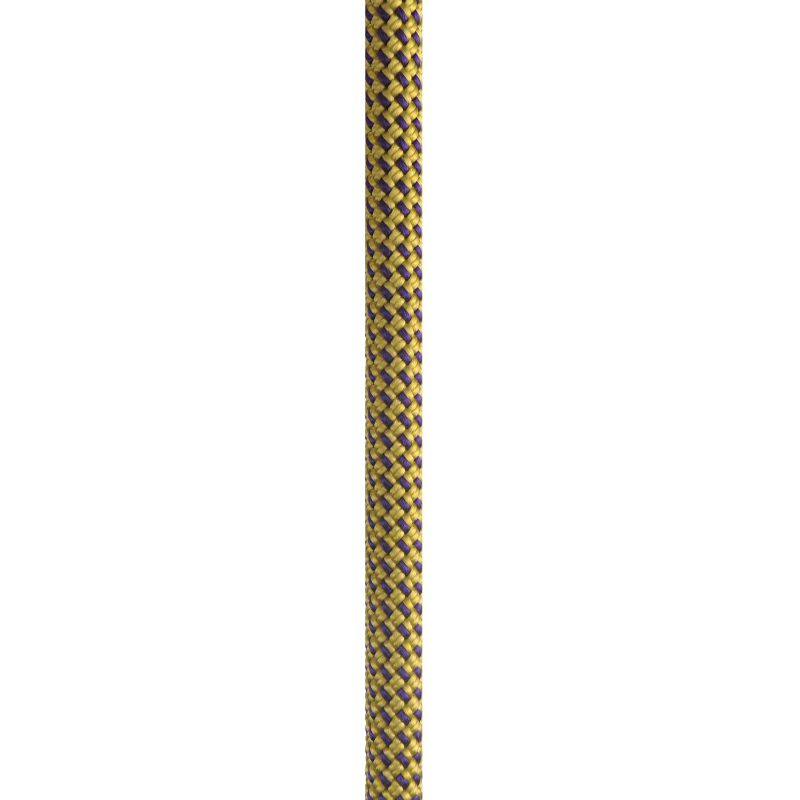

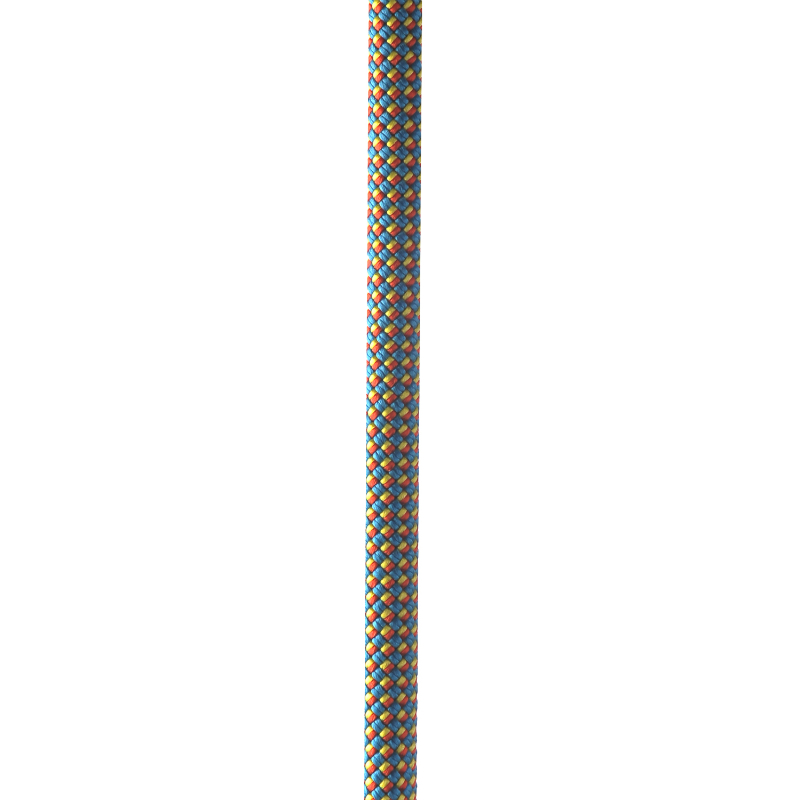

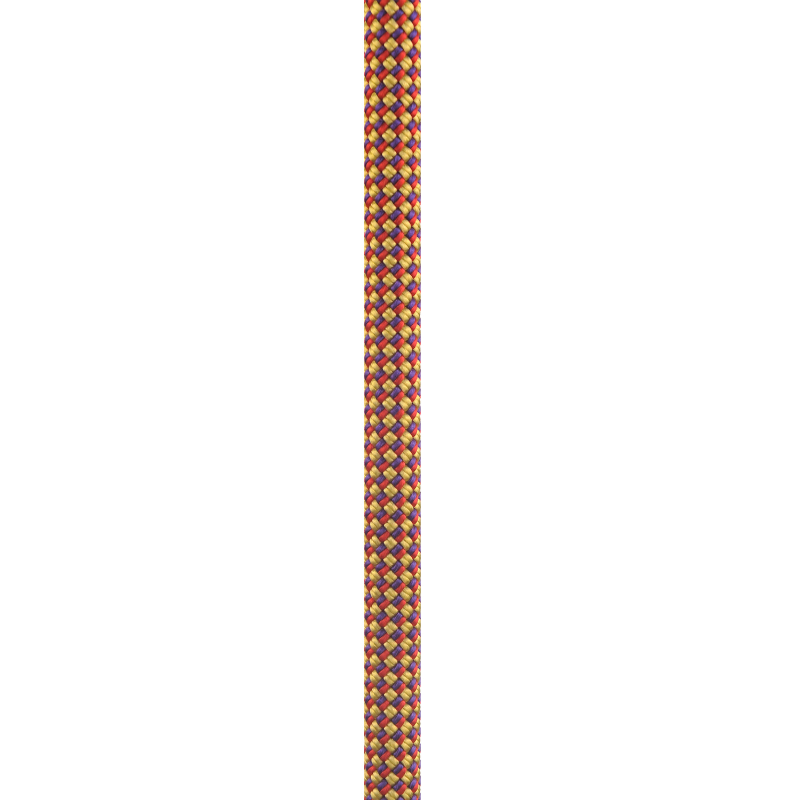

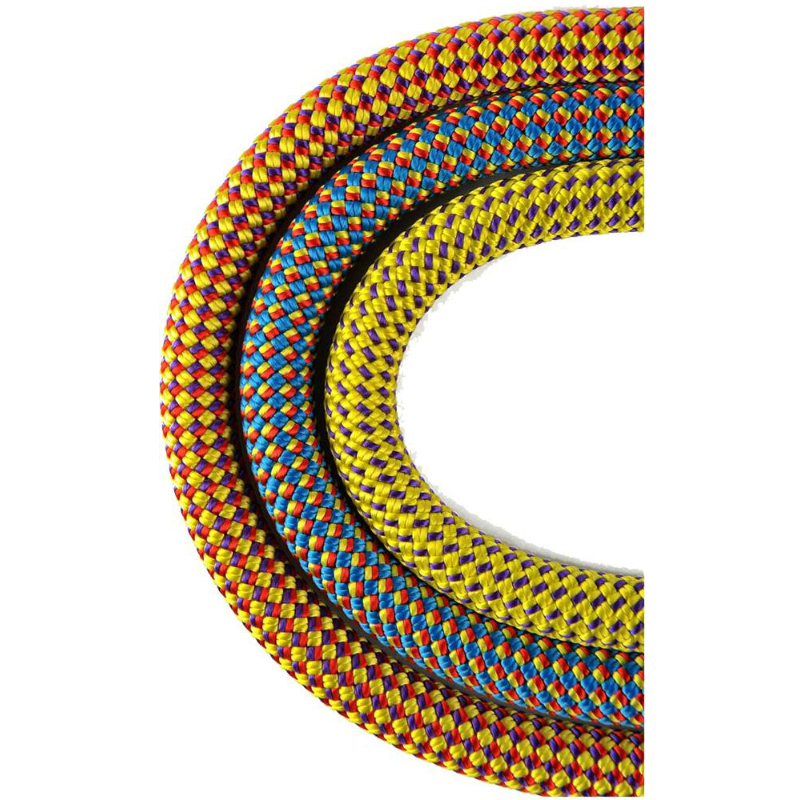

9.8mm Insight 50m
♦Thermo Shield Treatment
♦Duo Tec-permanent mid-rope marking
When you click a link below and then checkout online, no matter what you buy (climbing gear or not), we get a small commission that helps us keep this site up-to-date. Thanks!
|Weight|| 61.0 g/m|
6.724 lbs / 3050 g
|Diameter (millimeters)||9.8 mm|
|Length (meters)||50 m|
|UIAA Falls (Single / Half / Twin)||5 / 00|
|Dynamic Elongation (Single / Half / Twin)||32.0 % / 0.0 % / 0.0 %|
|Static Elongation (Single / Half / Twin)||9.3 % / 0.0 % / 0.0 %|
|Impact Force (Single / Half / Twin)||8.80 kN / 0.00 kN / 0.00 kN|
|Sheath Proportion (%)||40.0 %|
|Sheath Slippage (mm)||0 mm|
|Type of Middle Mark||Marking|
|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
