A pictoral representation of UIAA-101 and EN-892 standards for ropes.

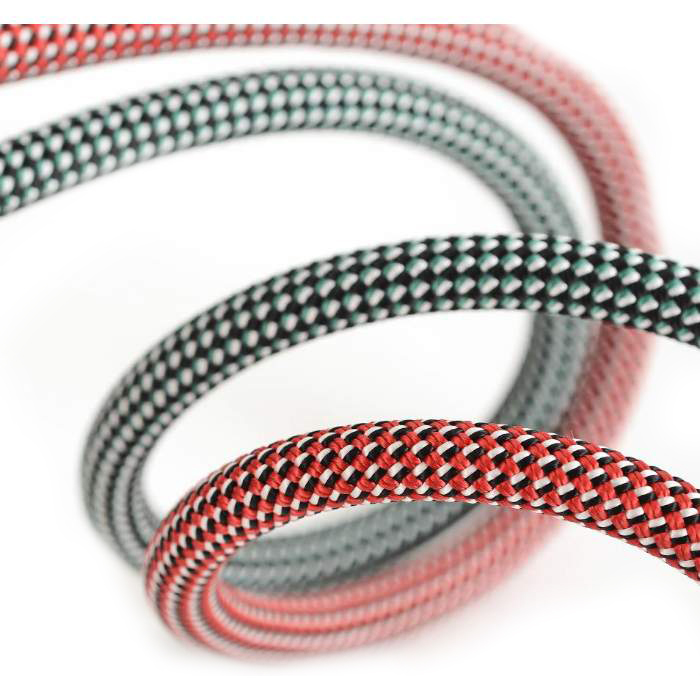

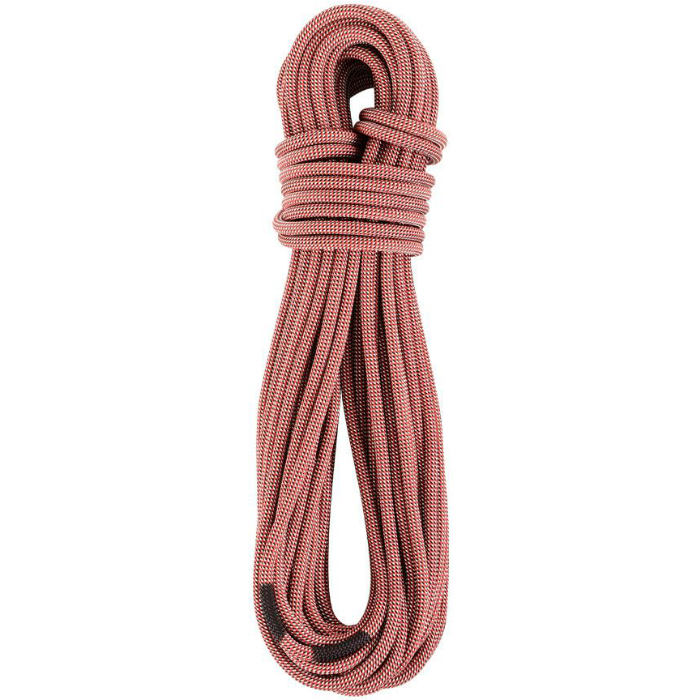

9.1mm Crux 70m Dry
Our thinnest single rope is ideal for pushing boundaries across all seasons and terrains; everything from redpointing sport routes at your limit to fast alpine ascents. The triple certification gives the Crux the flexibility to be used in twin, half and single rope systems for ultimate versatility. The Crux is the rope for when low weight, superb handling, and top flight performance are required.
Superlight, high performance single rope.
UIAA Dry treated for year round use, improved life and less drag.
ThermoControl treatment for superb handling and stability.
Triple Certified: Twin, Half, and Single.
Two colorways for effective guiding with clients.
|Weight|| 54.0 g/m|
8.333 lbs / 3780 g
|Diameter (millimeters)||9.1 mm|
|Length (meters)||70 m|
|UIAA Falls (Single / Half / Twin)||5 / 20 / 22|
|Dynamic Elongation (Single / Half / Twin)||-|
|Static Elongation (Single / Half / Twin)||-|
|Impact Force (Single / Half / Twin)||8.60 kN / 6.90 kN / 10.60 kN|
|Sheath Proportion (%)||33.0 %|
|Sheath Slippage (mm)|||
|Type of Middle Mark||None|
|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
