A pictoral representation of UIAA-101 and EN-892 standards for ropes.

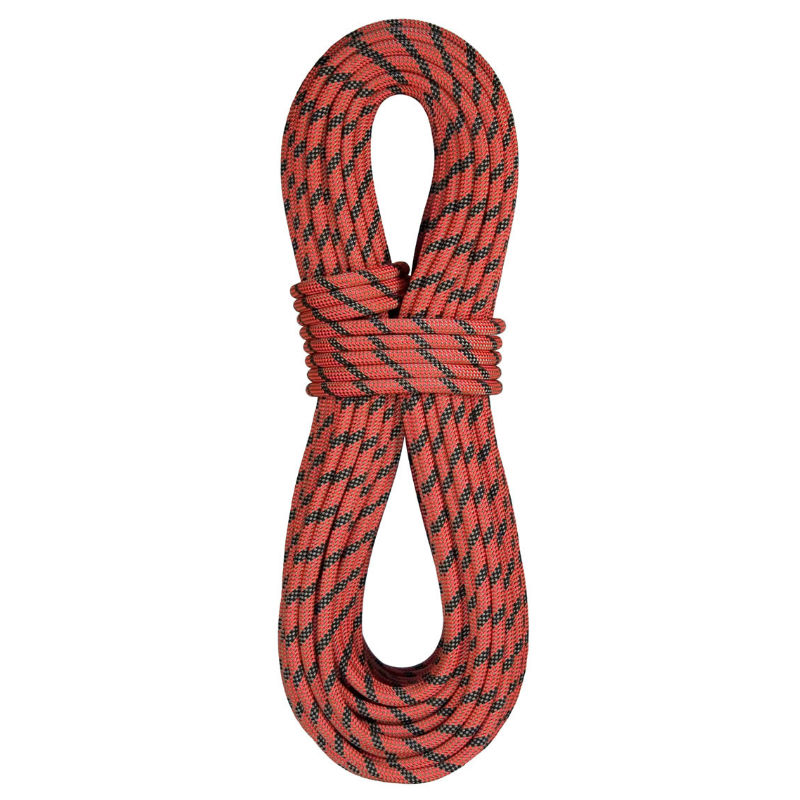

9.9mm Pulse 70m
The All new 9.9 mm Pulse from BlueWater is now available! 40 carrier sheath construction is braided to be firm for extended rope life. Easy to clip the Pulse holds is profile and does not flatten out. Light and a low, low impact force for this diameter range.
|Weight|| 62.0 g/m|
9.570 lbs / 4340 g
|Diameter (millimeters)||9.9 mm|
|Length (meters)||70 m|
|UIAA Falls (Single / Half / Twin)||7 / 00|
|Dynamic Elongation (Single / Half / Twin)||35.5 % / 0.0 % / 0.0 %|
|Static Elongation (Single / Half / Twin)||8.4 % / 0.0 % / 0.0 %|
|Impact Force (Single / Half / Twin)||7.80 kN / 0.00 kN / 0.00 kN|
|Sheath Proportion (%)||31.0 %|
|Sheath Slippage (mm)||0 mm|
|Type of Middle Mark||None|
|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
