A pictoral representation of UIAA-101 and EN-892 standards for ropes.

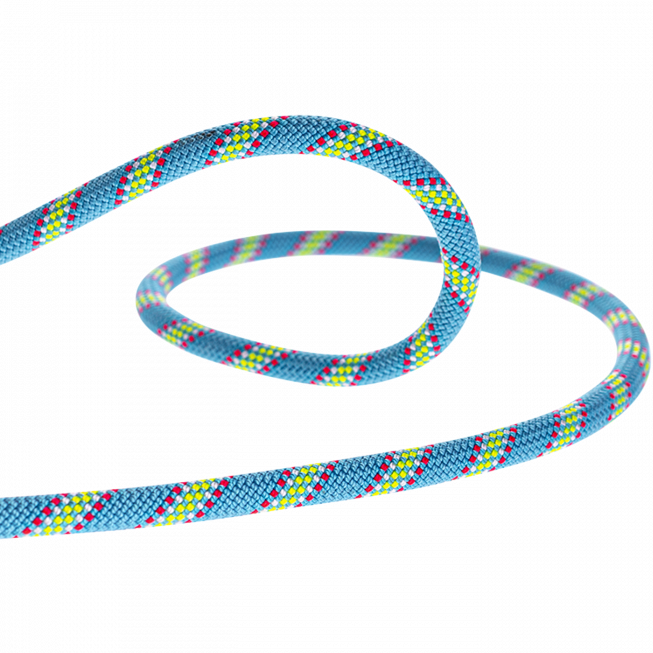

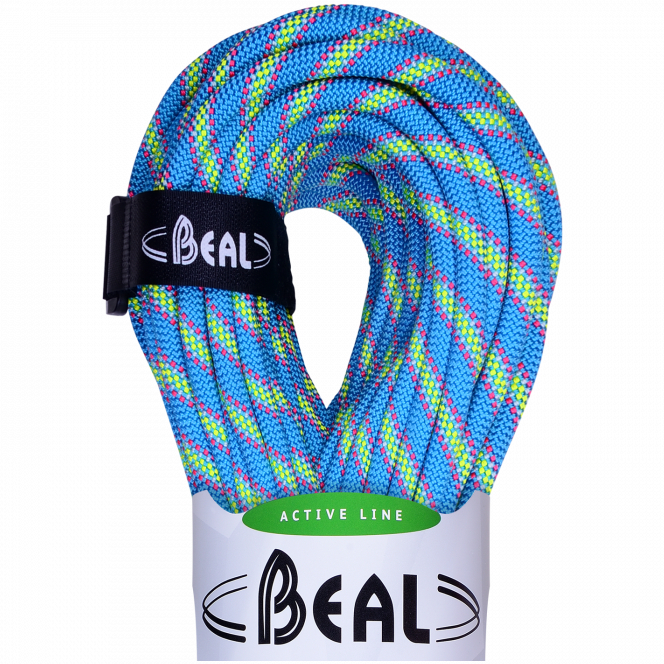

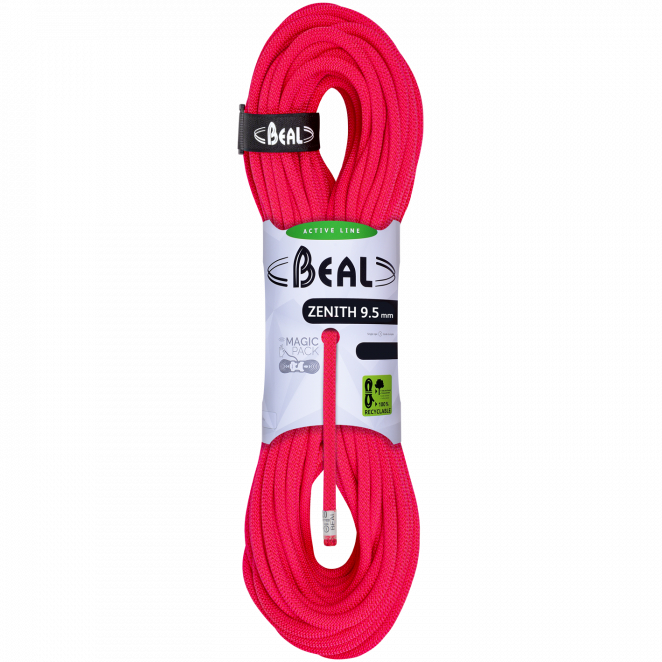

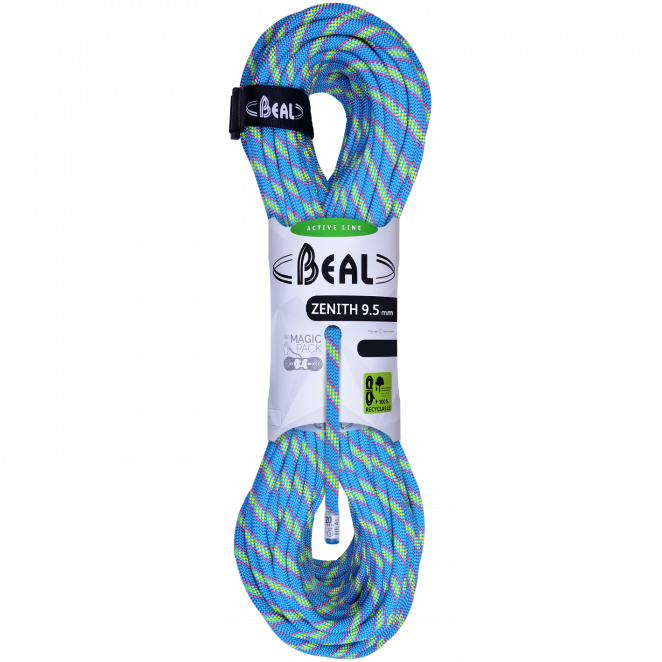

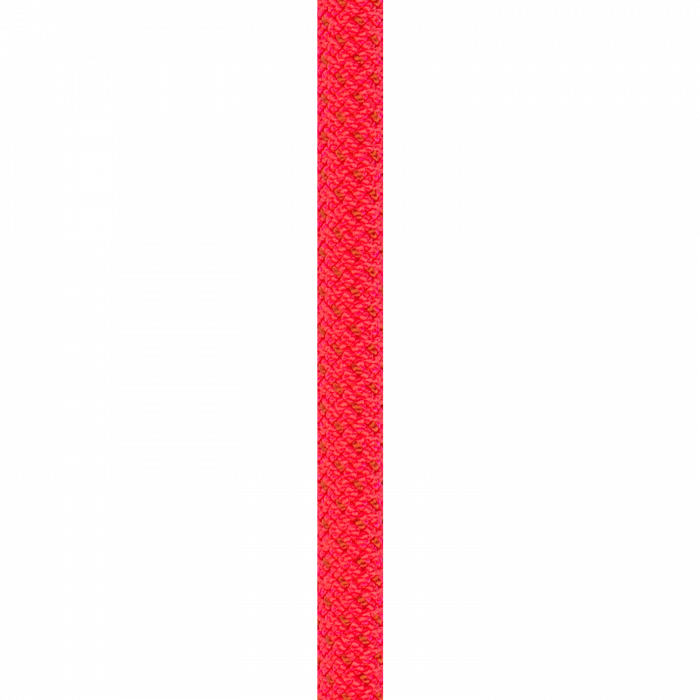

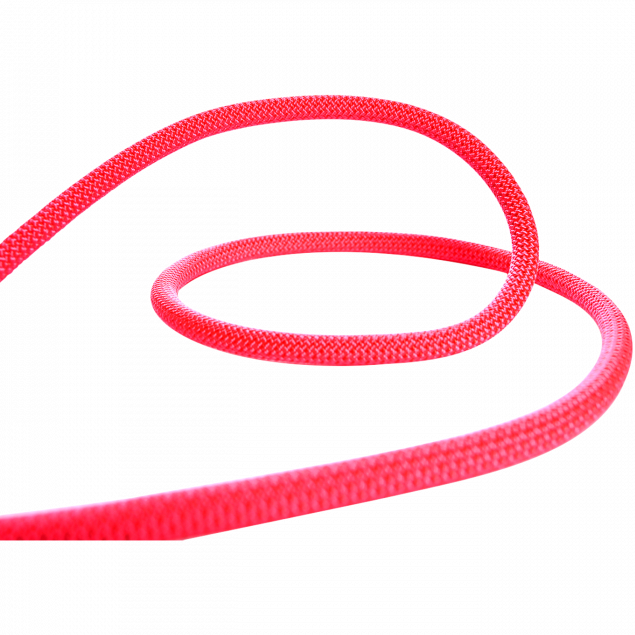

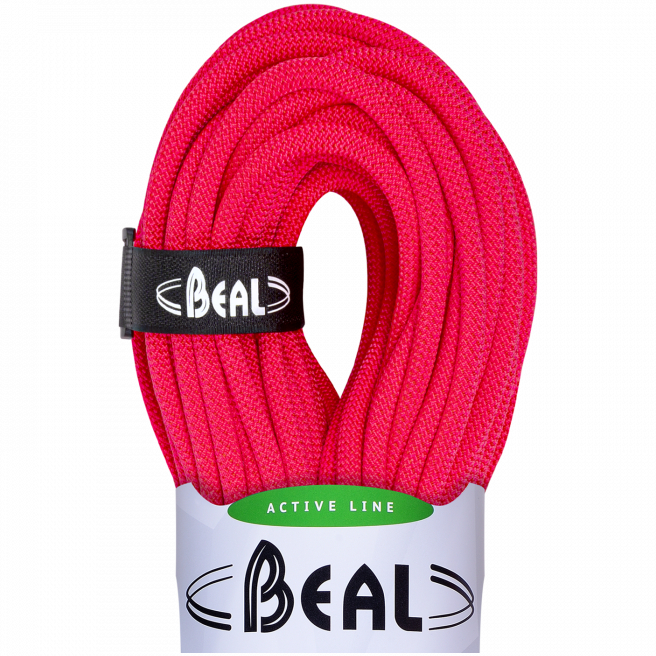

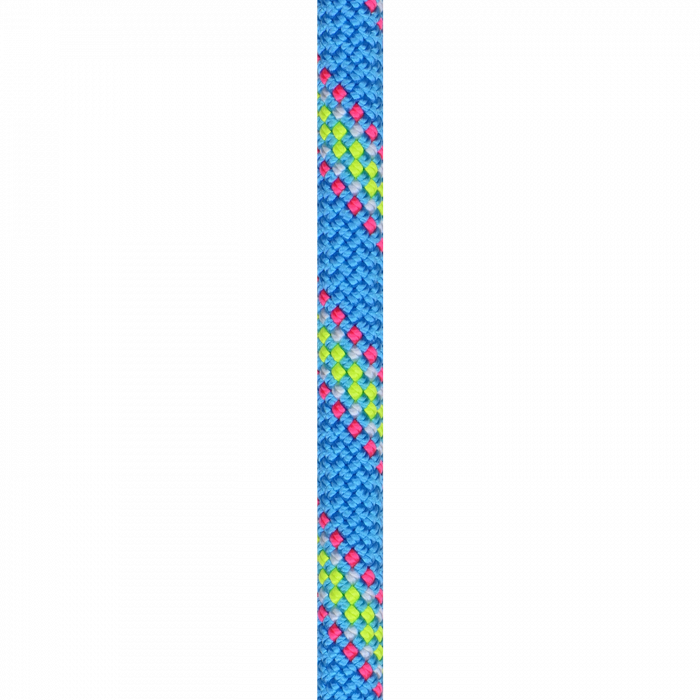

9.5mm Zenith 40m Classic
Part of Beal's Active Line with ropes designed to cover the largest range of climbing disciplines possible without the use of chemical treatments or dye. Using only Nylon from Bluesign certified sources. With Beal's advanced technologies to provide excellent impact absorption and low impact forces. Zenith 9.5MM is light weight, performance oriented single rope for use at the crag. The 9.5 diameter makes it run smoothly through the carabiners and easy to clip.
|Weight|| 59.0 g/m|
5.202 lbs / 2360 g
|Diameter (millimeters)||9.5 mm|
|Length (meters)||40 m|
|UIAA Falls (Single / Half / Twin)||6 / 00|
|Dynamic Elongation (Single / Half / Twin)||- / 0.0 % / 0.0 %|
|Static Elongation (Single / Half / Twin)||- / 0.0 % / 0.0 %|
|Impact Force (Single / Half / Twin)||7.50 kN / 0.00 kN / 0.00 kN|
|Sheath Proportion (%)||38.0 %|
|Sheath Slippage (mm)||0 mm|
|Type of Middle Mark||Marking|

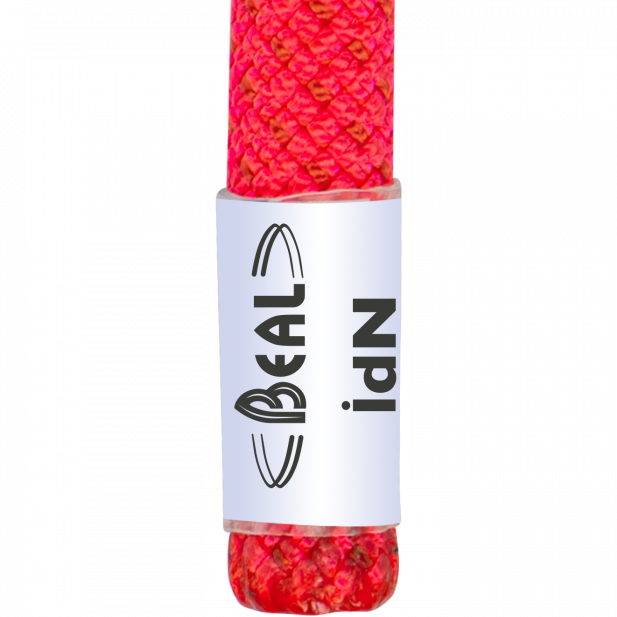

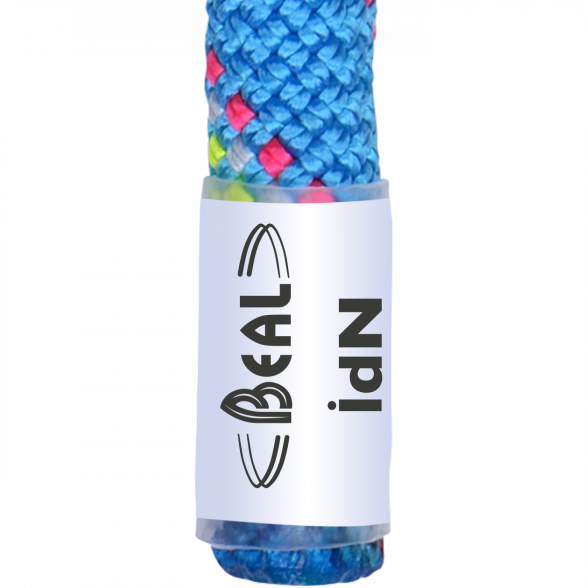

|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
