A pictoral representation of UIAA-101 and EN-892 standards for ropes.

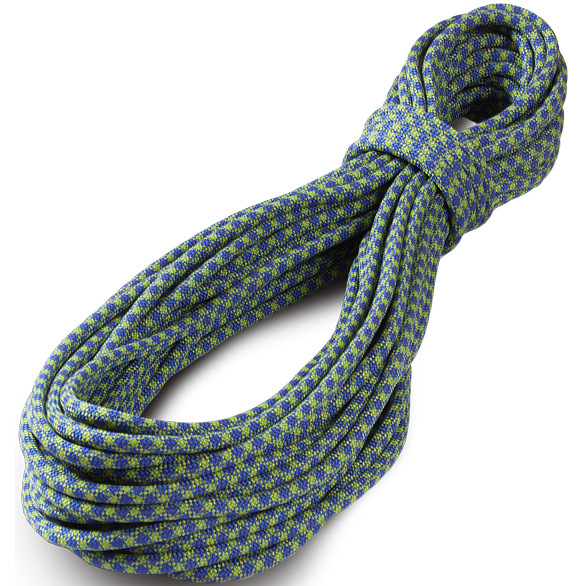

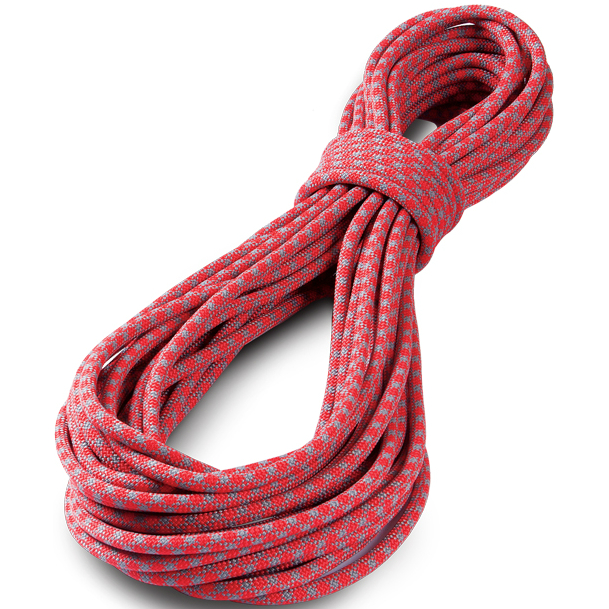

10.4mm Indoor 50m
A top indoor rope specially developed and tested for climbing on artificial walls and for top rope belaying. Robust sheath, practical and easy identificable rope design, long life, excellent handling – are the specific parameters of a rope for indoor climbing.
|Weight|| 72.0 g/m|
7.936 lbs / 3600 g
|Diameter (millimeters)||10.4 mm|
|Length (meters)||50 m|
|UIAA Falls (Single / Half / Twin)||8 / 00|
|Dynamic Elongation (Single / Half / Twin)||35.0 % / 0.0 % / 0.0 %|
|Static Elongation (Single / Half / Twin)||6.5 % / 0.0 % / 0.0 %|
|Impact Force (Single / Half / Twin)||7.70 kN / 0.00 kN / 0.00 kN|
|Sheath Proportion (%)|||
|Sheath Slippage (mm)||0 mm|
|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
