A pictoral representation of UIAA-101 and EN-892 standards for ropes.

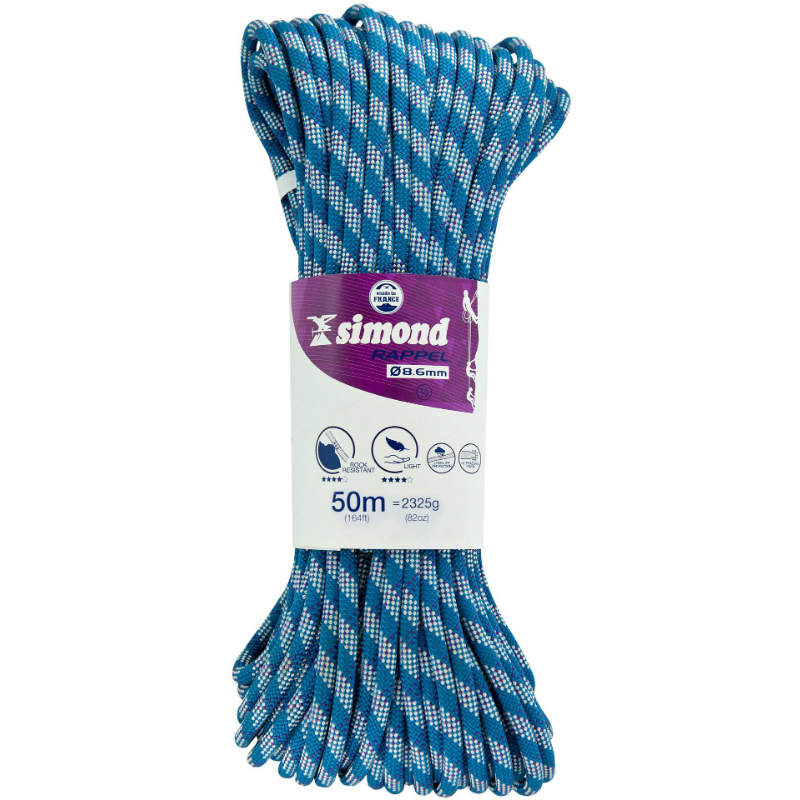

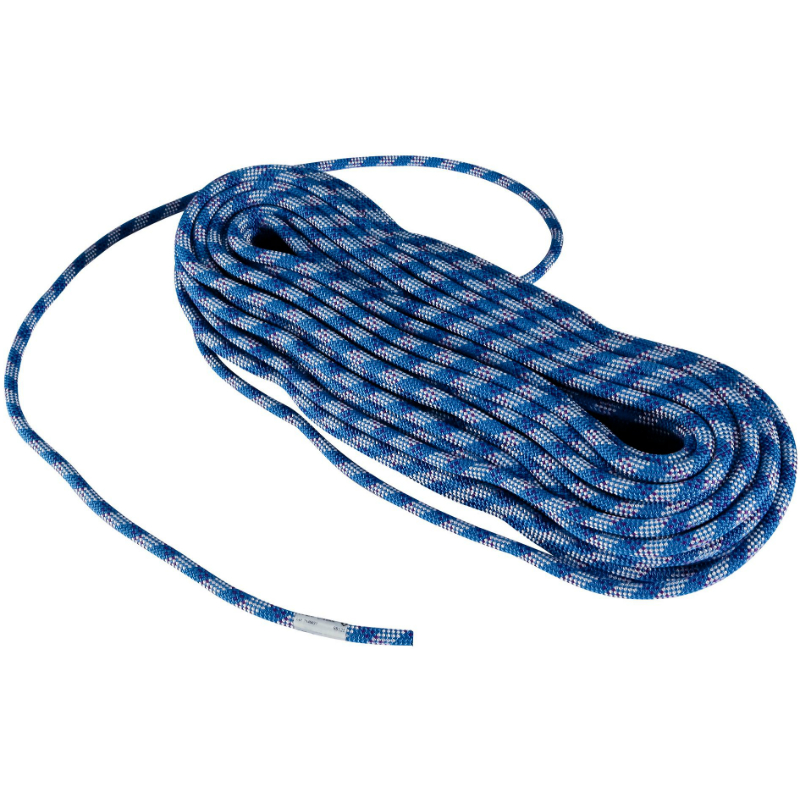

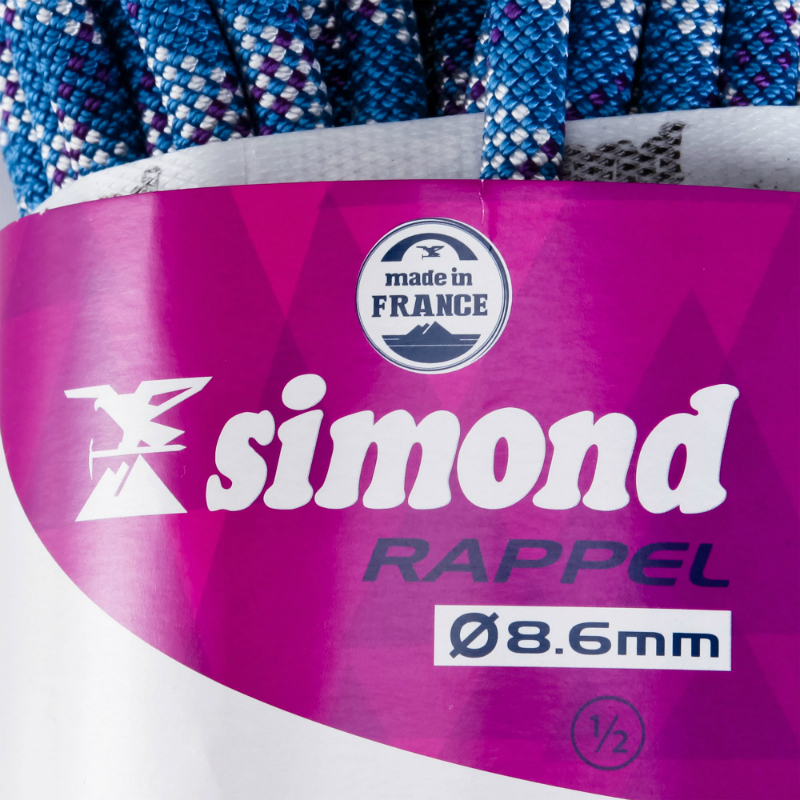

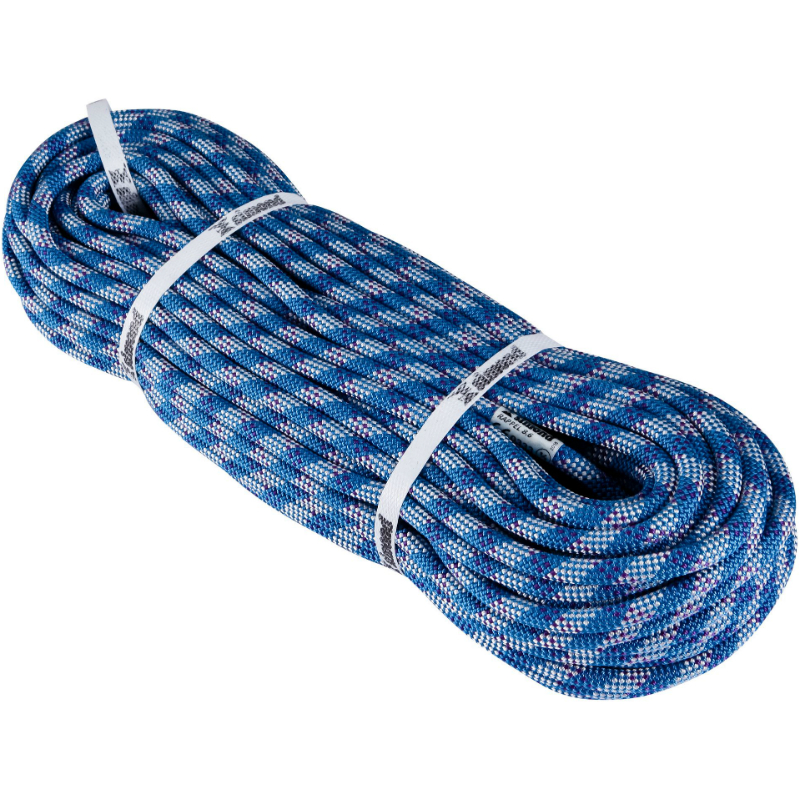

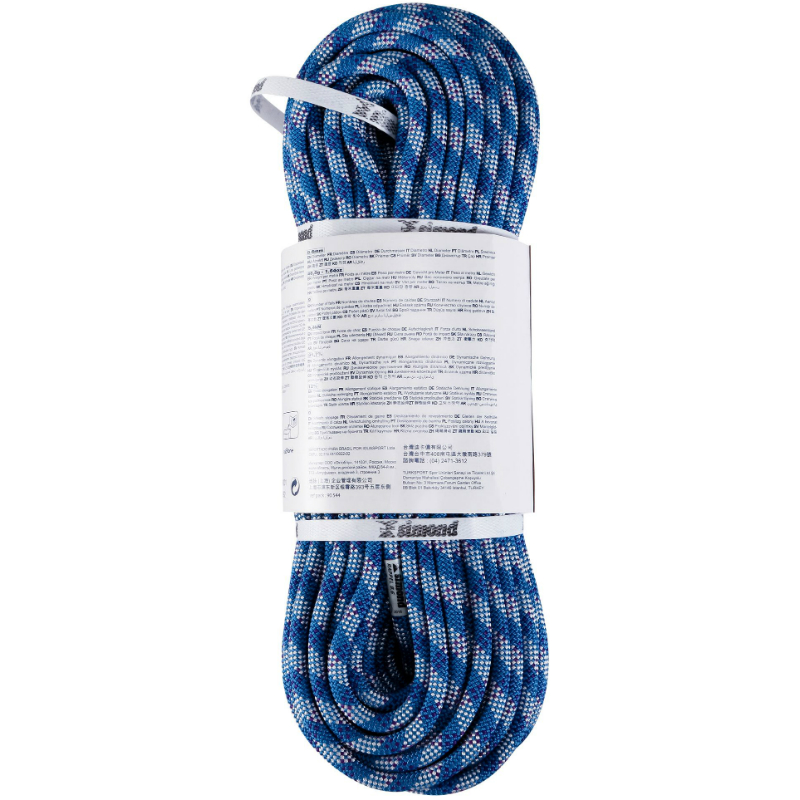

8.6mm Double Rope 50m Dry
For climbing and rappeling with 2 or 3 persons on long routes.

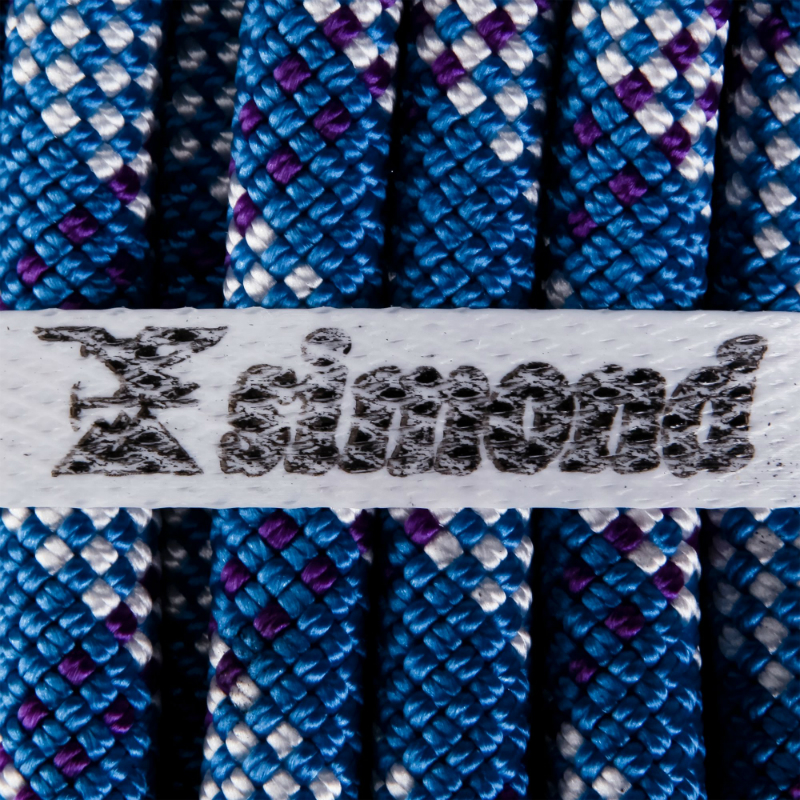

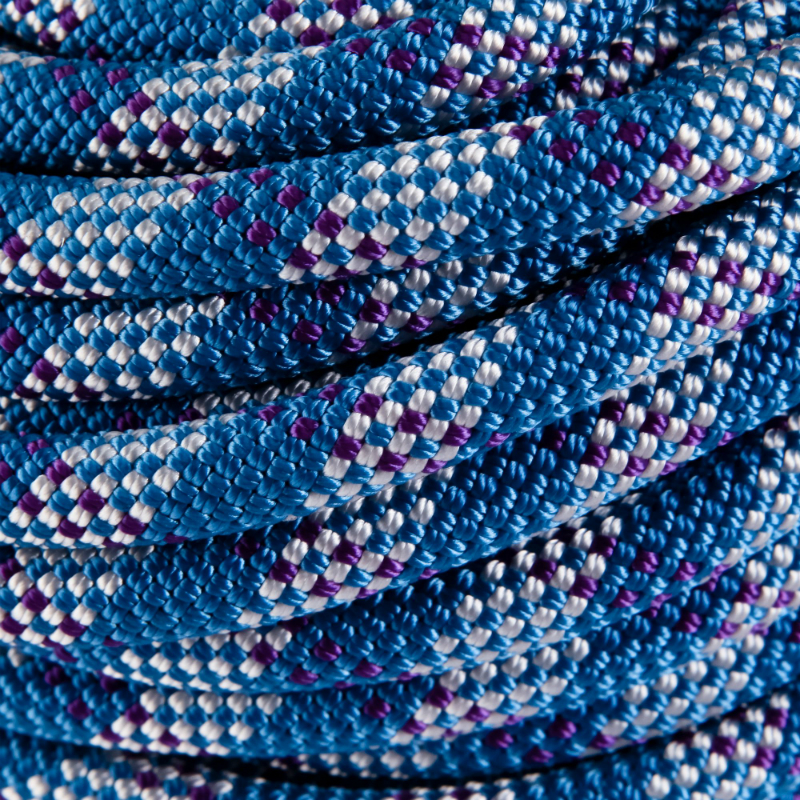

Sheath with long life treatment, makes it more durable in contact with rock face.
Main fabric : 100.0% Polyamide 6 (PA6).
|Weight|| 46.5 g/m|
5.125 lbs / 2325 g
|Diameter (millimeters)||8.6 mm|
|Length (meters)||50 m|
|Rope Type||Half (Double)|
|UIAA Falls (Single / Half / Twin)||0 / 6 / 0|
|Dynamic Elongation (Single / Half / Twin)||0.0 % / 31.7 % / 0.0 %|
|Static Elongation (Single / Half / Twin)||0.0 % / 12.0 % / 0.0 %|
|Impact Force (Single / Half / Twin)||0.00 kN / 5.40 kN / 0.00 kN|
|Sheath Proportion (%)|||
|Sheath Slippage (mm)||0 mm|
|Rope End Marker||None|
|Certification||CE, EN, UIAA|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
