A pictoral representation of UIAA-101 and EN-892 standards for ropes.

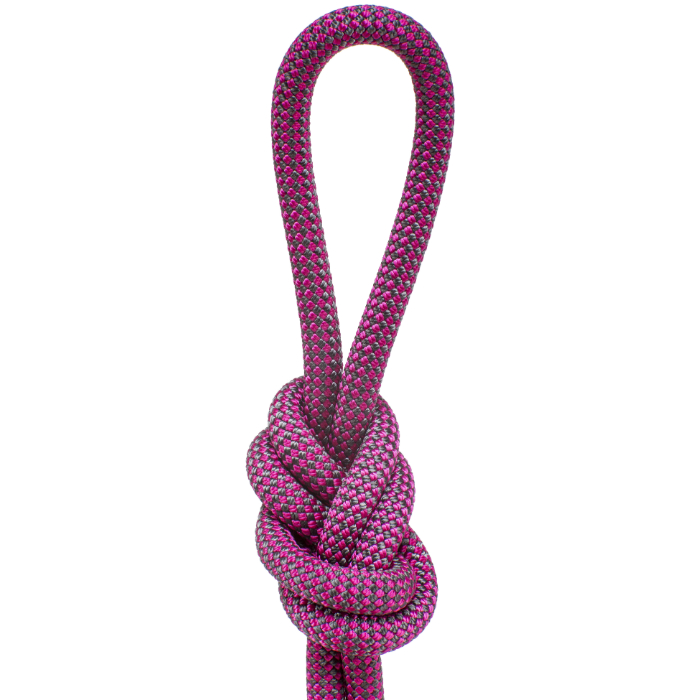

10.5mm Jump 70m Dry
Jump 10.5 is a simple rope designed mainly for indoor climbing. In terms of construction it is designed for a high level of use on artificial climbing walls. It is characterized by high safety level and mechanical durability. It is a very compact, flexible rope with excellent knotability.
Area of use: artificial climbing walls, rocks, rock walls, mountaineering.
Mission: robust rope for high loading and maximum safety.
|Weight|| 69.0 g/m|
10.648 lbs / 4830 g
|Diameter (millimeters)||10.5 mm|
|Length (meters)||70 m|
|UIAA Falls (Single / Half / Twin)||9 / 00|
|Dynamic Elongation (Single / Half / Twin)||32.0 % / 0.0 % / 0.0 %|
|Static Elongation (Single / Half / Twin)||7.1 % / 0.0 % / 0.0 %|
|Impact Force (Single / Half / Twin)||8.70 kN / 0.00 kN / 0.00 kN|
|Sheath Proportion (%)||32.0 %|
|Sheath Slippage (mm)||0 mm|
|Rope End Marker||None|
|Certification||CE, EN, UIAA|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
