A pictoral representation of UIAA-101 and EN-892 standards for ropes.

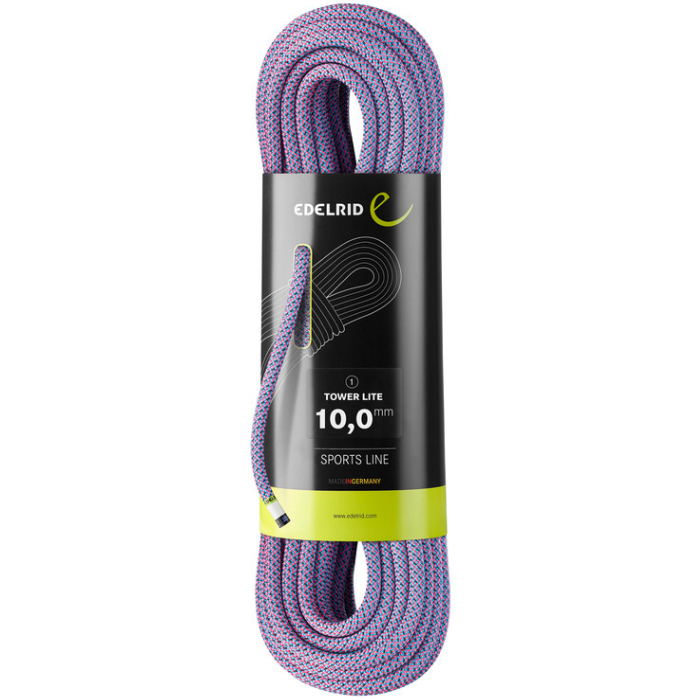

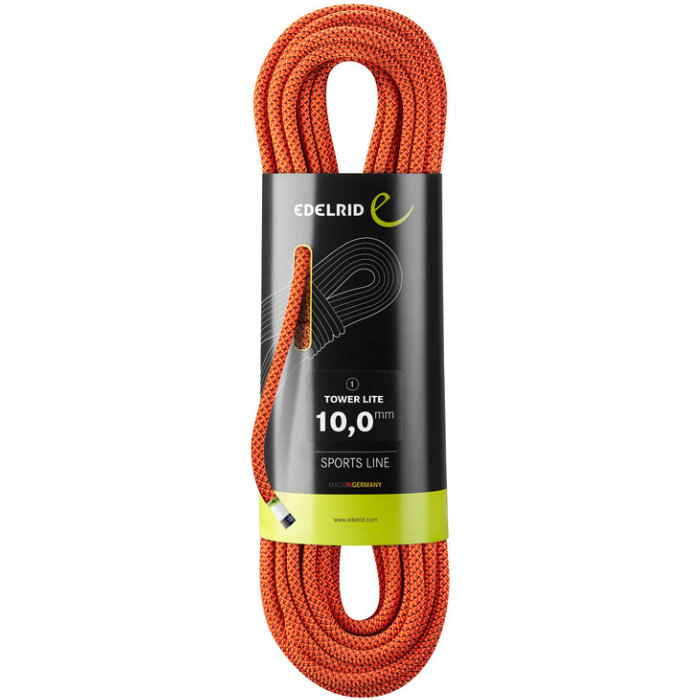

10mm Tower Lite 200m
Rope specially designed for use in gyms with a higher sheath proportion to make it extra hard wearing.
Special kernmantle design minimises sheath slip.
Sheath texture ensures a sure grip.
Increased sheath proportion for maximum abrasion protection.
Thermo Shield treatment for perfect handling.
|Weight|| 66.0 g/m|
29.101 lbs / 13200 g
|Diameter (millimeters)||10.0 mm|
|Length (meters)||200 m|
|UIAA Falls (Single / Half / Twin)||8 / 00|
|Dynamic Elongation (Single / Half / Twin)||34.0 % / 0.0 % / 0.0 %|
|Static Elongation (Single / Half / Twin)||8.0 % / 0.0 % / 0.0 %|
|Impact Force (Single / Half / Twin)||8.70 kN / 0.00 kN / 0.00 kN|
|Sheath Proportion (%)||41.0 %|
|Sheath Slippage (mm)||0 mm|
|Rope End Marker||None|
The UIAA equipment standard provides a baseline for equipment performance in a test lab under controlled conditions on new equipment. Although these test conditions are relevant to the conditions encountered climbing, conditions encountered at the crags and the condition of the equipment are equally important. This recommendation from the UIAA member federation The British Mountaineering Council (BMC) provides vital equipment information that is NOT explicitly addressed in the standard, particularly failure modes of the equipment and recommendations for the use, inspection, maintenance, and retirement of equipment.
